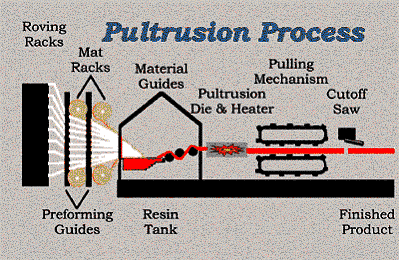

      FRP Pultruded Profiles are produced with fiberglass roving and continual strand mat as reinforcements and unsaturated polyester resin as matrix materials under the pulling force generated by advanced pultruded equipment .It is widely used handrail, support,beam and other structure materials etc.
　



Availability List of SPPS

Name Size (mm) Unit wt
(kg/m)
Round Tubes
/Rods		 19.0 X 3.2
25.0 X 3.0
28.0 X 3.0
32.0 X 2.5/2.0
30.0 X 2.0
60.0X3.5
71.0 X 4.0
76.0 X 4.0		 0.310
0.3900.440
0.389/0.35
0.334
1.120
1.380
1.530
I-Shapes 304.8 X 152.4 X 12.7
103.0 X 100 X 6.5
80.0 X 30 X 3.0
65.0 X 30 X 3.0
40.0 X 30 X 3.0
38.1 X 15.2 X 4.5
25.0 X 30 X 3.0
25.4 X 15.0 X 4.0		 13.80
3.040
0.820
0.710
0.580
0.588
0.480
0.331
Channel 152.4 X 42.9 X 9.5
127.0 X 45.0 X 6.35
101.6 X 28.6 X 6.35
76.2 X 22.23 X 6.35
50.0 X 30.0 X 5.00
52.0 X 25.0 X 3.0
76.0 X 25.0 X 3.0
111.0 X 25.0 X 3.0 		3.67
2.300
1.680
1.250
0.833
0.519
0.673
0.788
Rectang-ular Tubes 101.6 x3.2x 50.8x 6.35
95.0 x45.5 x3.2
90.0 x4.0 x40.0 x7.0
75.0 x3.0  x35.0 x6.0
65.0 x3.0 x30.0 x3.0
63.5 x37.0 x3.5		 2.304
1.749
2.070
1.580
1.100
1.082
Flat Strips 76.2 X 10.0
25.0 X 4.2
15.2 X 4.2		 1.420
0.189
0.119
Name Size (mm) Unit wt
(kg/m)
Square Tubes 101.6 X 101.6 X 6.35
76.2 X 76.2 X 6.35
50.8 X 50.8 X 6.35
50.8 X 50.8 X 3.20
32.0 X 32.0 X 4.00 		4.600
3.480
2.100
1.100
0.800
Leg Angles 101.6 X 101.6 X 6.35
90.0 X 60.0 X 5.0
76.2 X 76.2 X 6.35
50.8 X 50.8 X 6.35
50.8 X 50.8 X 3.20
42.0 X 47.0 X 3.0
40.0 X 40.0 X 4.0 		2.300
1.360
1.740
1.100
0.600
0.512
0.600
U-Shapes 400.0 X 100.0 X5.5
300.0 X 150.0 X 4.5
300.0 X 100.0 X4.5
200.0 X 100.0 X3.5
180.0 X 180.0 X 12.5
100.0 X 50.0 X3.2 		6.058
4.930
4.056
2.540
9.600
1.260
Flat Sheets 400.0 X 5.5
300.0 X 4.5
200.0 X 3.5
100.0 X 3.2 		3.950
2.220
1.350
0.736
Flight Channel 100.0 X25.0X4.5
150.0 X25.0X4.5
200.0X25.0X5.5 		1.127
1.600
2.500
Custom Profiles Ladder profiles, Frames Used in Freight¨s Panel, etc. 　

　
　
